Understanding the Single Phase Energy Meter

What is a Single Phase Energy Meter?

Definition and Function of a Single Phase Energy Meter

A single-phase energy meter is a gadget that measures electrical energy utilized in appliances or systems connected to single-phase power supply networks. It measures the current and voltage flowing over time so it can calculate the amount of energy consumed in kilowatt-hours. These types of meters are mostly used in residential homes and smaller commercial businesses that are supplied by a single-phase power supply that has a voltage of 230V at a frequency of 50 or 60 Hz depending on the area.

For more in-depth information you should view Single Phase Energy Meter - Dadao

How is power measured from a single-phase meter?

Single-phase energy meters are based on electromagnetic induction principles so they measure power with an accuracy depending on the components built into the meter such as current and voltage coils. These components produce magnetic fields depending on the amount of electrical current and voltage in the circuit. These fields turn on a moving part of the meter (usually a disc) which moves with a velocity proportional to the power consumed. By measuring how many times the disc spins in a set time, it calculates energy consumption. Many new single-phase meters use digital signal processors for more precise and efficient power measurement.

Find more info now

Significance of Single-Phase Systems in Household Uses

In most homes, single-phase energy meters are the preferred option because single-phase power is straightforward and efficient for home use. Homes typically consume energy on a lower scale which includes lighting, heating, and use of electric appliances, which makes use of single-phase energy convenient. Single-phase meters are also compact, inexpensive, and easy to install, making them suitable for energy measurement in these places. Furthermore, single-phase systems are less complicated to install than three-phase systems; thus, lowering maintenance and operational expenditure for the homeowners.

Types of Single Phase Energy Meters

Electromechanical KWh Meters

Analog or electromechanical KWh meters capture energy consumption data via the revolving motion of a disk. The energy consumed is proportional to the rotations of the disk. Although reliable and economical, these meters lack functionalities such as remote reading or precise periodical data capture, which renders them obsolete in modern contexts.

Modern Meters

New generation smart meters are real-time monitoring devices that enable the measurement of energy consumption. Unlike traditional KWh meters, smart meters allow two-way communication with the utility service provider, capturing more detailed information on energy consumption while allowing remote troubleshooting and support for real-time billing. Using smart meters improves energy efficacy, as users are directly provided with valuable information via mobile applications and websites. The primary limitation of smart meters remains the high initial purchase cost in comparison to traditional KWh meters.

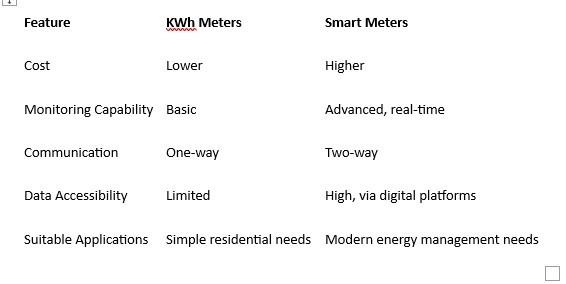

Comparison Between KWh Meters and Smart Meters

Choosing the Right Phase Meter for Your Needs

• Audit Your Energy Consumption - Ask yourself if your electricity usage requires routine observation or sophisticated analytics.

• Economic Factors - KWh electromechanical meters are cheaper at purchase, but smart meters are more cost-effective for energy expenditure management later on.

• Long-Term Strategy - A smart meter aligns more with your aims if your intention is to incorporate renewable energy sources or shift to dynamic tariff structures.

• Simplicity - KWh meters are better suited for users prioritizing ease of maintenance and manual operation. For those more interested in technology, smart meters are much easier to use.

How to Install a Single-Phase Energy Meter?

Step-by-Step Guide for Installation

Assemble the Tools and Materials Needed

Make sure to gather a screwdriver set, pliers, insulated gloves, wire strippers, a voltage tester, and any other tools necessary for the task at hand.

Check the phase meter single, the gauge wires, and other circuit breakers or fuses to make sure they are in working order.

Turn off the Supply Power

For safety concerns, take the major power supply for the device out before any installation commences. Ensure that the wires are indeed free of any live current by using a voltage tester.

Live incoming and neutral wires should be connected

The plus (live) wire coming from the power source should be connected to the “line” or “L” input terminal. The neutral wire should go to the “N” terminal.

Outgoing live and neutral wires should be connected

Attach the outgoing live wire to the load terminal and the outgoing neutral wire to the neutral terminal of the meter.

Secure Connections and Install Meter

Ensure all screws are firmly tightened in order to secure the connections and mount the meter in place with corresponding screws or mounting hardware.

Turning on the main power restores power and meter testing

Turn on the main power supply and check the functionality of the meter against set parameters (screen display readings, and so on).

Required Tools and Wires for Installation

• Tools

• Screwdriver set

• Pliers

• Insulated gloves

• Voltage tester

• Wire strippers

• Wires

• Follow local regulations to select an appropriate wire gauge, typically 2.5 mm² or 4 mm² copper wire for household installations.

• Use color-coded wires for live (brown or red) and neutral (blue) to facilitate correct connections.

• Common Mistakes to Avoid When Installing a Single-Phase Meter

• Live Wires: Always remember to switch off the power before touching the wires to avoid electric shock.

• Incorrect Connections: Confusing the live connection with the neutral one can lead to a malfunction of the meter or hazard to safety.

• Below Standards: Non-compliance with substandard tools, wires, and meters adds to the risk of failure of the system.

• Failure on Tightening: Electric hazards, loose connections, or overheating all stem from a lack of proper tightening of loose connections.

• Lack of Following Safety Measures: Wear insulated gloves and work in a dry place. These as other safety measures must always be observed.

Understanding Single-Phase Power Consumption

How to Calculate Your Power Consumption

To calculate your power consumption, you need to account for the wattage of your electrical appliances and the duration of their usage. Begin by identifying the appliance's power rating, usually listed in watts (W) or kilowatts (kW). Multiply this value by the number of hours the appliance runs each day, and then by the number of days in a billing cycle. For example, if an appliance uses 1 kW and operates for 5 hours daily over a 30-day billing period, its energy consumption would be calculated as follows:

Energy Consumption (kWh) = Power Rating (kW) × Hours Used Per Day × Number of Days

Energy Consumption = 1 kW × 5 hours × 30 days = 150 kWh

Energy Consumption (kWh) = Power Rating (kW) × Hours Used Per Day × Number of Days

Energy Consumption = 1 kW × 5 hours × 30 days = 150 kWh

Repeat this process for all appliances to determine your total power consumption, which determines your electricity bill.

The Impact of Electrical Appliances on Your Bill

In modern society, electrical appliances have greatly changed the way we live and utilize energy. For example, heating, cooling systems, water heating appliances, and other aged appliances usually consume more electricity to function. New appliances are nowadays made with advanced technology and design which greatly reduce how much power they consume. Additionally, phantom loads, which are the unsedated energy that devices on standby consume, should be monitored. Power waste can be minimized by unplugging unused electronics or using intelligent sockets.

What Affects the Efficiency of Your Single-Phase Meter?

Just like a multi-phase meter, a single-phase meter is also subject to a set of factors that affect its efficiency. These include base factors such as poor installation or faulty wires which can result in environmental conditions such as voltage fluctuation or extreme weather. Furthermore, age, deterioration, and even poor calibration all might lead to under-measurement of the power for billing purposes. A single-phase has more reliability if undergoes maintenance checks for proper grounding and installment compliance with standard regulations.

Safety Considerations for Single Phase Energy Meter Usage

Ensuring Optimal Performance and Safety Best Practices for Managing Electrical Circuits

In order to achieve the highest performance while ensuring safe management of electrical circuits, one must adhere to the required safety policies and practices. The process begins with procuring equipment and components that have regulatory certification or are of a higher standard. Proper grounding is necessary to protect the system and devices from automatic surge or fault conditions. When performing maintenance and service on circuitry, always make sure to disconnect the power supply to eliminate the risk of electrical shock. During periodic inspections of the circuitry, look for excessive signs of wear, loose connections, or corrosion that can make the circuitry faulty and fail. Moreover, surge protection devices can be used to shield the system from voltage spikes that can cause disastrous destruction to the electrical system. All changes or improvements made to the circuit are documented for compliance purposes and so that the necessary safety measures are observed.

Guidelines to Seek Help for Single Phase Problems

Self-help strategies can solve most of the day-to-day management tasks and minor maintenance related to the single-phase energy meters and circuits. However, in certain cases, professional help will have to be sought. This is especially the case in dealing with continuous unexplained tripping, excessive oscillation of voltage, or even incorrect readings from the meter. In particular situations like these, an electrician or a technician needs to be consulted. They have the necessary knowledge and equipment to deal with such issues and can ensure that appropriate diagnostic measures and repairs or installations are carried out. Furthermore, installation of a single-phase system usually requires supervision for adherence to local electrical regulations, which is always advisable. With regards to big upgrades to the system, complete overhauls, or even installation of more sophisticated equipment, an expert guarantees the safety and service reliability of the electrical system.

Common Issues with Single Phase Energy Meters

What to Do if Your Phase Meter Cannot Start Naturally?

If your single-phase energy meter does not start on its own, there could be deeper issues with it or the connections. First, check the power supply to the meter and check if the input terminals are properly connected. Look at the meter and ensure there is no loose wiring or damage. Damaged connections and components can lead to the phase meter malfunctioning. If the basic setup and connection issues do not solve the problem, it may be time to reach out to a professional for a detailed inspection to find the internal issues that likely exist.

Diagnosing and Addressing Problems with Meter Connections

Energized single-phase meters may have connection faults that lead to inaccurate readings, power surges, or complete system shutdown. To troubleshoot such issues, monitor and analyze the meter’s associated wiring for insulation damage, rusting, and faulty connections. Check that the voltage and current levels at the input and output terminals match the expected values with appropriate test equipment like multimeters. If any discrepancies are found, immediately repair loose connections or faulty wires. All electrical work needs to be performed with the system turned off to reduce the possibility of electrical shock from live wires. For intricate or persistent connection issues, it is necessary to contact an outsourced expert to guarantee proper system maintenance.

How to Manage Voltage Fluctuations in Single-Phase Systems

Some of the issues that may arise from primary structure voltage fluctuations in single-phase systems include equipment malfunction, energy waste, and safety risks. Problems ranging from the local power grid to system overload can cause voltage fluctuations. One can use voltage stabilizers or an uninterruptible power supply (UPS) system to control or maintain the voltage at a constant level. The condition of the infrastructure wiring and system load are required to be routinely maintained to see that power distribution is not unequal. Furthermore, mitigates circuit overloads by employing the method of distributing appliances and machinery over several circuits in highly consuming areas. For continual or drastic fluctuations, one must seek professional help to diagnose and fix the problem.
